Place of Origin : China
Brand Name : RIELLO
Model Number : M2S 1250
MOQ : 1
Price : $91,299
Battery Type : Lead Acid Battery, VRLA, Li-Ion, Supercaps
Phase : Three Phase
Protection : Overvoltage
Weight : 2147 kg
Type : On-line
Electric Energy : 1000 Wh
Rated voltage : 380 / 400 / 415 three-phase + neutral
Voltage tolerance : 240 - 480
Input Frequency : 40 - 72Hz
Rated frequency : 50/60
Power factor : 0.99
Overload : 125% for 10 min; 150% for 1 min
Battery arrangement : Separate/common
Dimensions : 2400x1025x2000 mm
IP rating : IP20
| Specification | Value |
|---|---|
| Place of Origin | China |
| Brand Name | RIELLO |
| Model Number | M2S 1250 |
| Electric Energy | 1000Wh |
| Battery Type | Lead Acid Battery |
| Phase | Three Phase |
| Protection | Overvoltage |
| Weight | 2147 kg |
| Type | On-line |
| Application | Semiconductor Industry |
| Rated voltage [V] | 380 / 400 / 415 three-phase + neutral |
| Voltage tolerance [V] | 240 - 480 |
| Input Frequency [Hz] | 40 - 72Hz |
| Rated frequency [Hz] | 50/60 |
| Power factor | 0.99 |
| Overload | 125% for 10 min; 150% for 1 min |
| Battery Type | VRLA, Li-Ion, Supercaps |
| Battery arrangement (parallel systems) | Separate/common |
| Dimensions (WxDxH) [mm] | 2400x1025x2000 |
| IP rating | IP20 |
|
|

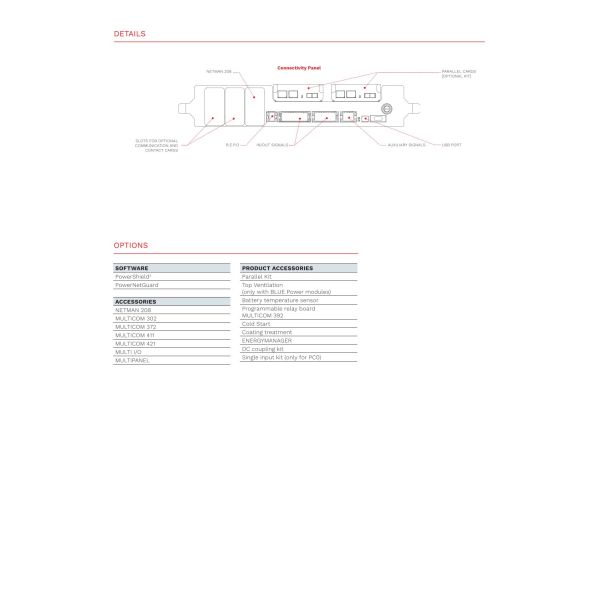

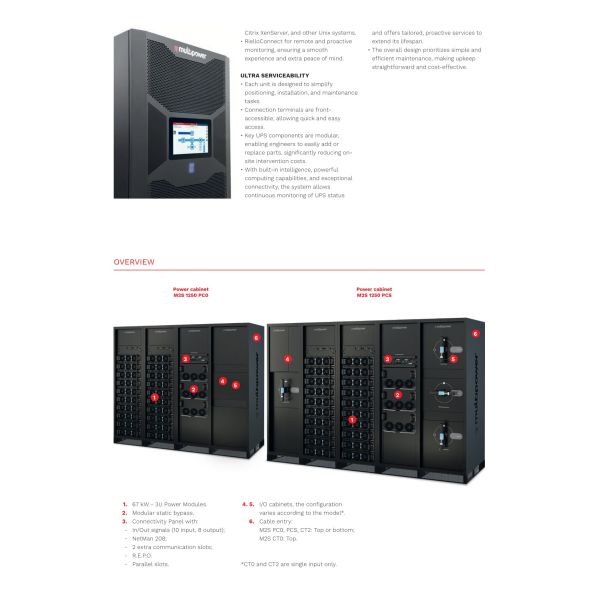

Riello Multi Power2 Scalable Modular UPS 1250KVA Three Phase Online Uninterruptible Power Supply for Data Centers Images |
