Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System

Place of Origin : Guangdong, China

Brand Name : Eaton

Model Number : Eaton Micro Modular Data Center

MOQ : 1

Price : $5,999

Battery Type : Lead Acid LFP Battery

Phase : Three Phase

Electric Energy : 400 Wh

Overall Dimension : L x [3400/3600] x [2523/2723] mm, L ≤ 5m

Cabinet Quantity : 10-48 Units

Skylight Width : 300/600/800mm

UPS Power Module : 25kw

Smart Busway Current : 160/250/400/630A

Cooling Capacity : 25-60kw

Display Screen : 21.5-Inch FHD Touch Screen

Cabinet Dimension : [600/800] x [1100/1200] x [2000/2200] mm

UPS Rated Capacity : 125kVA/125kW

Air Supply Method : Horizontal row-based air supply

Cooling Method : Air-cooled, water-cooled, chilled water

Indoor Unit Dimension : [300/600] x 1100 x 2000 mm

Contact Now

Specification
Micro-module System
Overall Dimension (L x W x H)
L x [3400/3600] x [2523/2723] mm, L ≤ 5m
Cabinet Quantity
10–48 units
Sealing Method
Cold/hot aisle containment
Installation Method
Horizontal floor or raised floor
Cabinet & Aisle Containment Subsystem
Cabinet Dimension (W x D x H)
[600/800] x [1100/1200] x [2000/2200] mm
Skylight Type
Fixed/flip skylight (support one-key reset)
Skylight Width
300/600/800mm
End Door Type
Automatic sliding door, manual sliding door/swing door
Lighting Component
Standard intelligent aisle lighting
Cabling Component
Separate trunking for power and signal cables configured on top of the cabinet
Power Supply & Distribution Subsystem
Integrated UPS
- Rated Capacity: 125kVA/125kW, Power Module: 25kW, Max. 5+1 redundancy
- 48 circuits for IT power distribution, 6 circuits for air conditioning power distribution, 1 circuit for lighting/environment
monitoring power distribution
- Optional ATS/dual-source/single-source input
- Support main/branch circuit power parameter monitoring
- Class C lightning protection
- Dimension: W600 x D1100 x H2000 mm, support heightening and deepening to align with cabinets
Smart Busway
- Rated Current: 160/250/400/630A
- Shell: Al-Mg alloy profile, Conductor: High-purity electrolytic copper
- Optional ceiling-mounted or cabinet-top installation
Rack PDU
Optional basic type, metered type or port-controlled type

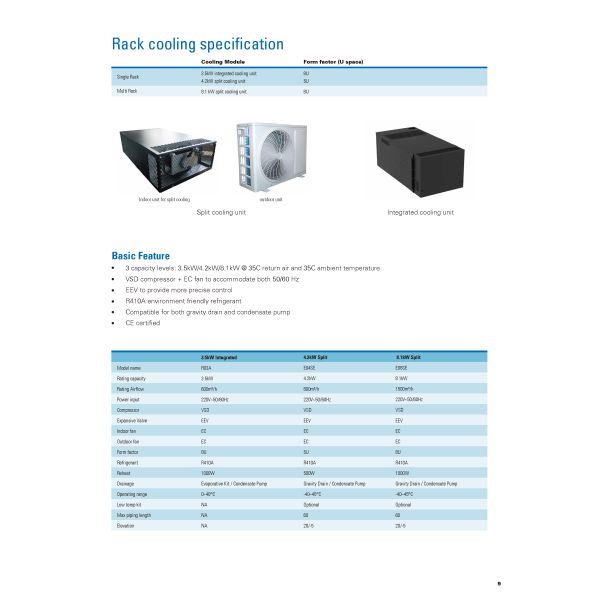

Cooling Subsystem
Air Supply Method
Horizontal row-based air supply
Cooling Method
Air-cooled, water-cooled, chilled water
Cooling Capacity
25-60kW
Indoor Unit Dimension (W x D x H)
[300/600] x 1100 x 2000 mm, support heightening and deepening to align with cabinets
Fluoride Pump
Optional
Centralized Condenser
Optional
Monitoring Subsystem
Micro-module Local Display
21.5-inch FHD touch screen
Environment & Equipment Monitoring Collector
16×RS485 ports, 12×DI, 4×DO, 2×LAN, dual power supply
Access Control & Security
Support combined authentication methods including password, card swiping, fingerprint and face recognition
Alarm Method
Support WEB interface, email, SMS, voice, audible and visual alarm, WeChat and other notification methods
Mobile APP
Supported
U-position Asset Management
Optional
Northbound SNMP Interface
Free and open
Product Description
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System

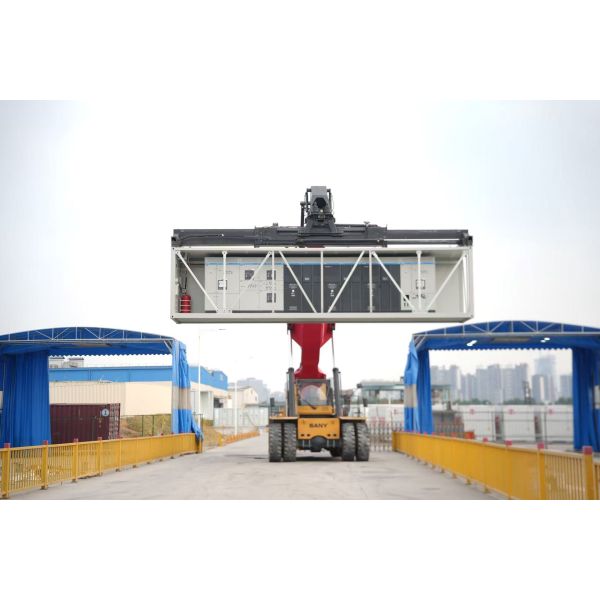

Product packaging
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Company Profile
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South
America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western
Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about
101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing
industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
